Diagram

Before you Start

🔥 This feature is currently considered experimental. Try it out and give feedback by reporting bugs and suggesting new features. It’s not recommended for production use.

👥 This feature is available to all users.

In Sirius Web, diagrams offer an interactive and visual way to work with your models.

They let you create, view, and edit elements and relationships graphically, helping you understand the structure and behavior of your system at a glance. You focus on modeling; the available tools and rules are already configured for you.

1. What You Can Do

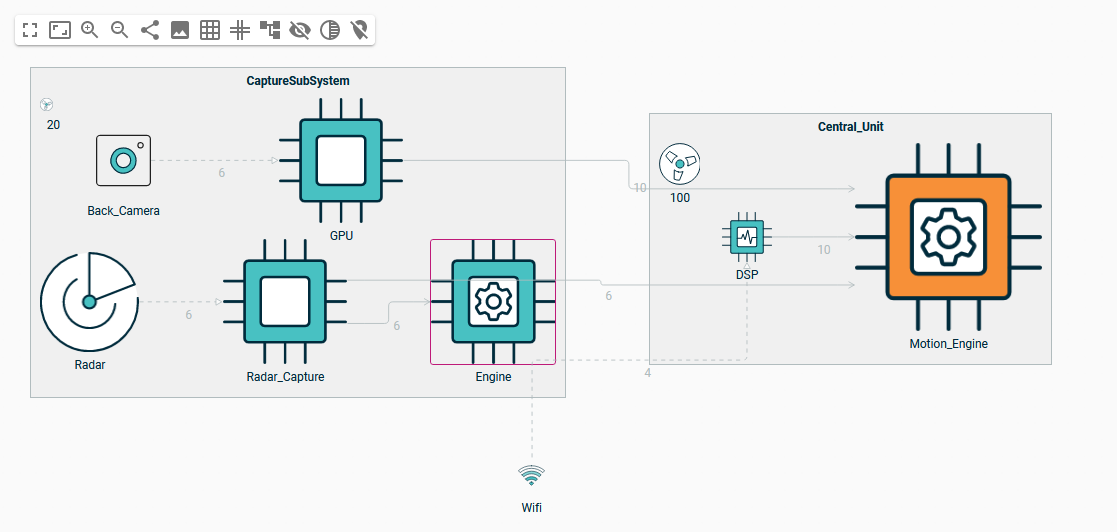

When you open a diagram, you’ll see model elements (such as components, links, containers, etc.) displayed as graphical shapes. You can:

Add new elements using the palette
Move, resize, and connect items
Edit labels and properties
Use zoom and layout controls to explore large models
Interact with the model in ways that are constrained by domain-specific logic

All your changes are automatically reflected in the underlying model and synchronized with other views like tables or forms.

1.1. Toolbar

The toolbar provides general actions for navigating and managing the diagram as a whole.

	Action	What it does
	Full screen	Opens the diagram in full-screen mode for distraction-free modeling.
	Fit to screen	Adjusts the zoom level to ensure all elements or the current selection fit within the visible area.
	Zoom	Lets you zoom in and out manually using the toolbar buttons.
	Share	Generates a shareable link to the current diagram.
	Export SVG	Downloads the current view of the diagram as an SVG, HTML SVG or PNG image.
	Snap to grid	Helps align elements precisely by snapping them to an invisible grid during movement or resizing.
	Helper lines	Displays visual guides when dragging elements to assist with alignment.
	Arrange all	Automatically reorganizes all elements to improve overall layout clarity.
	Smart Edges	Enables edge routing that avoids crossing nodes (experimental, client-side only, not saved).
	Show hidden elements	Reveals hidden edges, nodes, or other visual components.
	Unfade elements	Restores full visibility to elements that were faded.
	Unpin elements	Allows previously pinned elements to be moved freely again.
	Filter	Applies visual filters to focus on elements matching specific attributes or types.

Action

What it does

Full screen

Opens the diagram in full-screen mode for distraction-free modeling.

Fit to screen

Adjusts the zoom level to ensure all elements or the current selection fit within the visible area.

Zoom

Lets you zoom in and out manually using the toolbar buttons.

Generates a shareable link to the current diagram.

Export SVG

Downloads the current view of the diagram as an SVG, HTML SVG or PNG image.

Snap to grid

Helps align elements precisely by snapping them to an invisible grid during movement or resizing.

Helper lines

Displays visual guides when dragging elements to assist with alignment.

Arrange all

Automatically reorganizes all elements to improve overall layout clarity.

Smart Edges

Enables edge routing that avoids crossing nodes (experimental, client-side only, not saved).

Show hidden elements

Reveals hidden edges, nodes, or other visual components.

Unfade elements

Restores full visibility to elements that were faded.

Unpin elements

Allows previously pinned elements to be moved freely again.

Filter

Applies visual filters to focus on elements matching specific attributes or types.

You can combine Arrange All, Helper Lines, and Snap to Grid to quickly clean up complex diagrams.

Smart Edges are experimental. They are computed dynamically on the frontend side, their precise layout is not persisted in the diagram.

1.2. Contextual Palette (Right-Click)

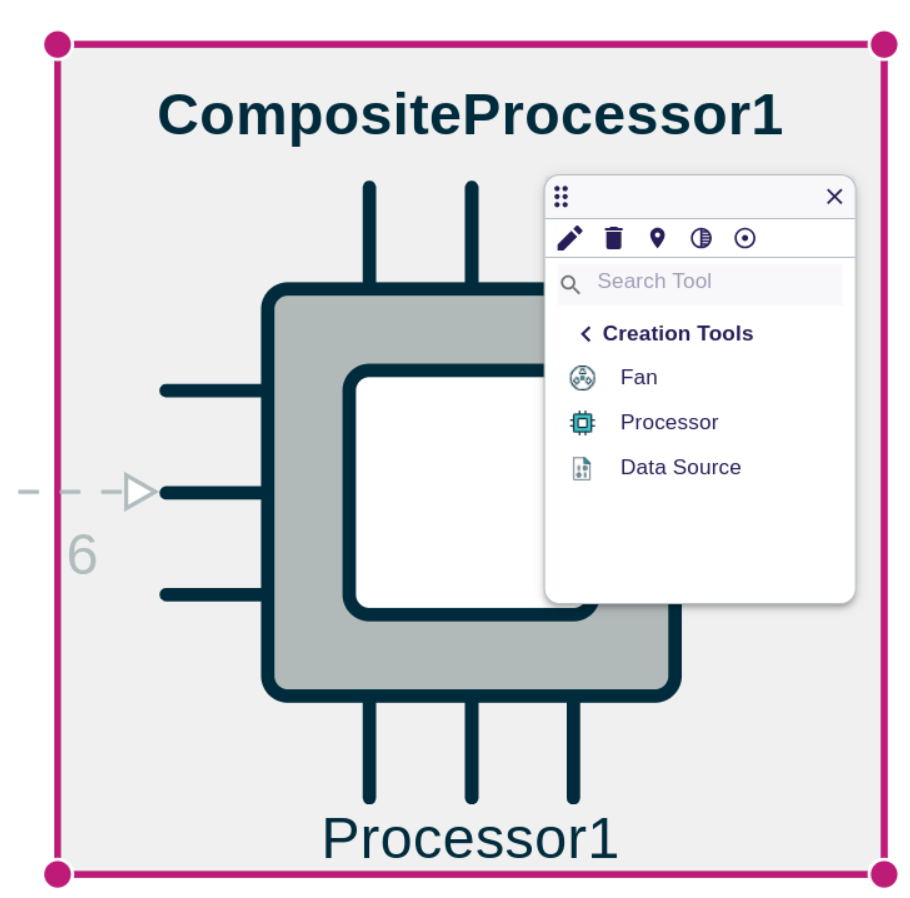

When you right-click on an element in a diagram, a contextual palette appears. It offers quick access to actions you can apply to the selected element—or to a group of elements if you’ve selected several.

Unlike the toolbar, which offers tools for managing the entire diagram, the contextual palette adapts to your selection—showing tools specific to the selected nodes, edges, or diagram.

1.2.1. How to Use

Right-click on any element in the diagram (e.g., a node, an edge, or the background of the diagram itself).
A palette appears next to the selected element.
Click any of the available tools to perform the desired task.

1.2.2. Tools on single element

	Tool	What it does

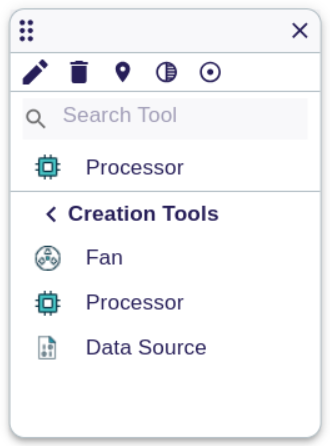

	Create element (Diagram)	Add a new child or related element (e.g., create a sub-component). You can create new nodes from the background of the diagram by right-clicking to open the palette. Creation tools are grouped by category; expand a section, choose a tool, and then click where you want to place the element.

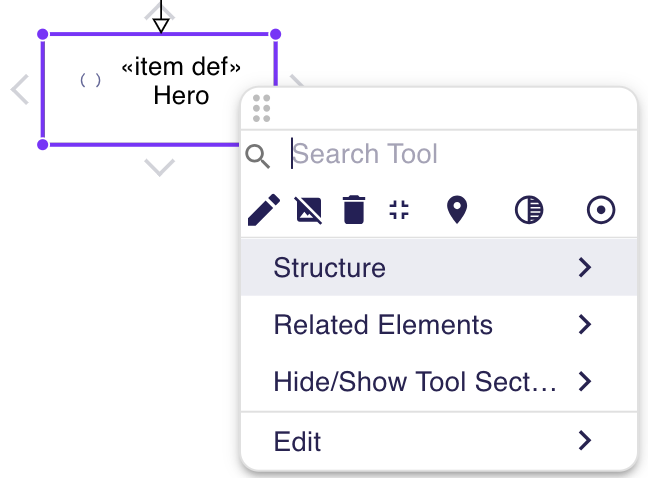

	Create element (in Element)	To add elements inside an existing node, right-click the parent element and select the appropriate creation tool.

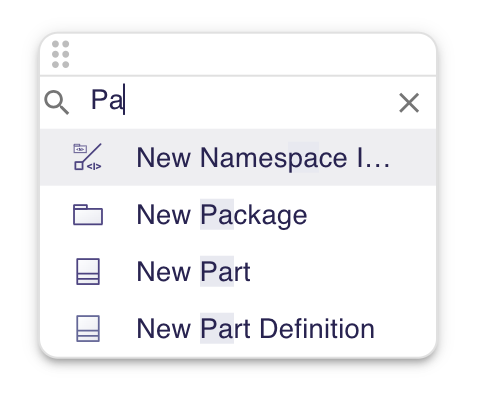

	Search field	The palette’s search field helps you filter tools across every section when a representation defines numerous element types.
	Create an edge	Add a new child or related element (e.g., create a connection).
	Delete from model	Remove the selected element from both the diagram and the semantic model.
	Delete from diagram	Remove the selected element from the graphical view.
	Collapse	Hide all the child nodes of the selected node.
	Edit	Lets you rename the element or change its properties directly in the diagram.
	Hide	Temporarily removes the element from the diagram. You can show it again later using the toolbar.
	Fade	Makes the element appear dimmed so it’s less distracting, without hiding it completely.
	Pin	Locks the element in place so it doesn’t move when rearranging the diagram.
	Reconnect	Change the source or target of an edge.
	Adjust size	Automatically resizes the element to fit its content.

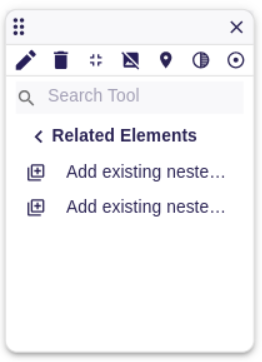

	Custom tools	Domain-specific actions that appear when the current domain provides them (for example: Mark as Deprecated, Duplicate, etc.).

Tool

What it does

Create element (Diagram)

Add a new child or related element (e.g., create a sub-component). You can create new nodes from the background of the diagram by right-clicking to open the palette. Creation tools are grouped by category; expand a section, choose a tool, and then click where you want to place the element.

Create element (in Element)

To add elements inside an existing node, right-click the parent element and select the appropriate creation tool.

Search field

The palette’s search field helps you filter tools across every section when a representation defines numerous element types.

Create an edge

Add a new child or related element (e.g., create a connection).

Delete from model

Remove the selected element from both the diagram and the semantic model.

Delete from diagram

Remove the selected element from the graphical view.

Collapse

Hide all the child nodes of the selected node.

Edit

Lets you rename the element or change its properties directly in the diagram.

Hide

Temporarily removes the element from the diagram. You can show it again later using the toolbar.

Fade

Makes the element appear dimmed so it’s less distracting, without hiding it completely.

Pin

Locks the element in place so it doesn’t move when rearranging the diagram.

Reconnect

Change the source or target of an edge.

Adjust size

Automatically resizes the element to fit its content.

Custom tools

Domain-specific actions that appear when the current domain provides them (for example: Mark as Deprecated, Duplicate, etc.).

The tools available in the contextual palette vary with the domain and representation description.

You can also use keyboard shortcuts or the details panel to perform some actions.

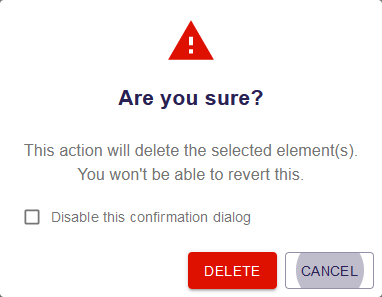

A confirmation dialog appears when you delete from the model, unless you disable it in the dialog itself.

The confirmation preference is stored in your browser’s local storage. Clear the Sirius Web data in the cache to restore the dialog.

1.2.3. Tools on Multiple Elements

When you select multiple elements (e.g., by holding Shift and dragging a selection box), the palette shows other tools including some for organizing and aligning the selection.

To select multiple elements:

Hold Shift and drag with the left mouse button to draw a rectangular selection zone.
Or hold Ctrl (or Cmd on Mac) and click individual elements to add or remove them from the selection.

	Tool	What it does
	Align horizontally	Aligns selected elements horizonally to the left, center or right.
	Align vertically	Aligns selected elements vertically to the top, middle or bottom.
	Distribute	Evenly spaces selected elements horizontally or vertically.
	Arrange	Automatically reorganizes selected elements for a clearer layout, such as a row, column, or grid.
	Justify	Adjusts the positions of selected elements to fill available horizontal or vertical space.
	Make same size	Sets all selected elements to have the same width and/or height as the last selected one.

Tool

What it does

Align horizontally

Aligns selected elements horizonally to the left, center or right.

Align vertically

Aligns selected elements vertically to the top, middle or bottom.

Distribute

Evenly spaces selected elements horizontally or vertically.

Arrange

Automatically reorganizes selected elements for a clearer layout, such as a row, column, or grid.

Justify

Adjusts the positions of selected elements to fill available horizontal or vertical space.

Make same size

Sets all selected elements to have the same width and/or height as the last selected one.

1.3. Alignment helpers and auto-sizing

The toolbar offers visual aids for precise positioning:

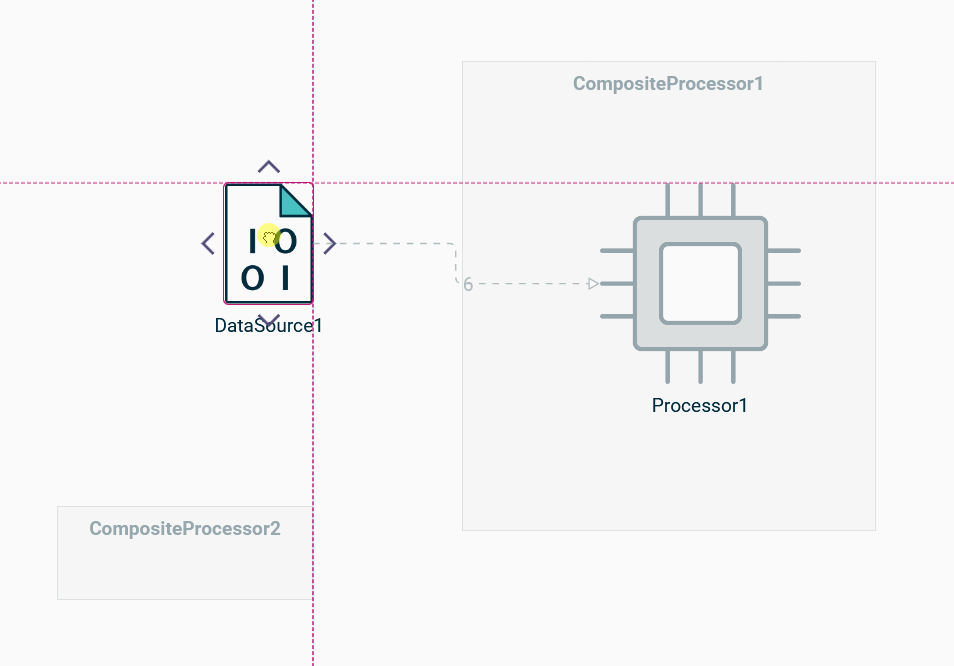

When helper lines are enabled, guides appear as you drag a node so you can align borders or centers perfectly. Nodes snap to these guides automatically:

Use the Adjust size tool in the contextual palette to shrink a node back to its minimal footprint if manual resizing made it too large:

1.4. Edge creation

Edges can be created directly from the diagram surface:

Click on a node to reveal the connection handles around its border, then drag a handle toward a target element.
Release the mouse over a valid target to finish the edge.

If no edge can be created to the given target, the corresponding node appears faded, which helps you avoid invalid edits. When you start the creation gesture, click the source element to display the handles, then drag from the appropriate arrow toward the target.

While you drag, the diagram draws a preview of the edge and highlights valid targets.

After you release the mouse button, a pop-up lists the compatible relationship types whenever more than one edge can be created between the selected target. If only one type fits, the edge is created immediately without displaying the dialog.

You can reconnect an existing edge by grabbing its source or target handle and dropping it on a new node. Invalid reconnection targets are faded just like during creation. Relationship edges are always synchronized with their semantic counterparts, so deleting them from a diagram also deletes them from the model. To delete a relationship from the model, select the edge and use the delete command.

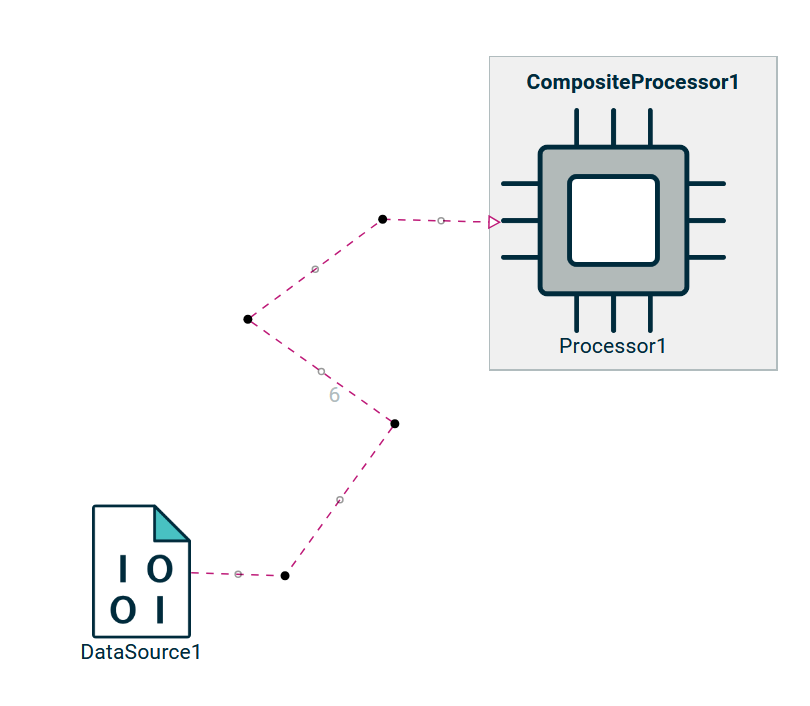

1.5. Editable edge paths

Edges expose handles so you can fine-tune their routing:

Drag the black handles to move existing segments.
Drag the gray midpoints to insert a new bendpoint.
Double-click on a bendpoint to remove it.
image::representations/editable-edge-reset-tool.png[Reset edge path] Use the palette action to restore the original path when needed:

2. Drag and drop

Diagrams support semantic drag-and-drop: select elements in the Explorer View and drop them on the diagram background to reveal them without altering the semantic model. Dropping elements directly into target nodes lets you quickly display the relevant views.

Graphical drag-and-drop works entirely within the diagram. Drag a node over another node or the background of the diagram to move it; eligible targets remain visible while forbidden ones fade out. As you hover over a valid target, it is highlighted to confirm the drop location.

3. When to Use It

Use the diagram representation when:

You want to visualize the structure or composition of a system.
You prefer a graphical layout to better understand relationships between elements.
You need to create or edit models in a spatial, drag-and-drop interface.
You’re working on system design, architecture, workflows, or any visual representation of domain logic.

4. Example

In a system modeling context, a diagram might show:

Components and their relationships (e.g., a Sensor, Controller, and Actuator)
Nested structures like subsystems or containers
Connections such as communication links or data flows
Visual cues based on domain rules (e.g., a red border around components with missing links)

This visual approach helps engineers and domain experts understand the system at a glance and make informed modeling decisions quickly.

The layout and available elements in the diagram depend on how the modeling environment has been configured.
